Architecture

Polyclaw is a monorepo containing a Python backend, a React frontend, and a Node.js terminal UI. The system is designed as a set of loosely coupled layers that communicate through well-defined interfaces.

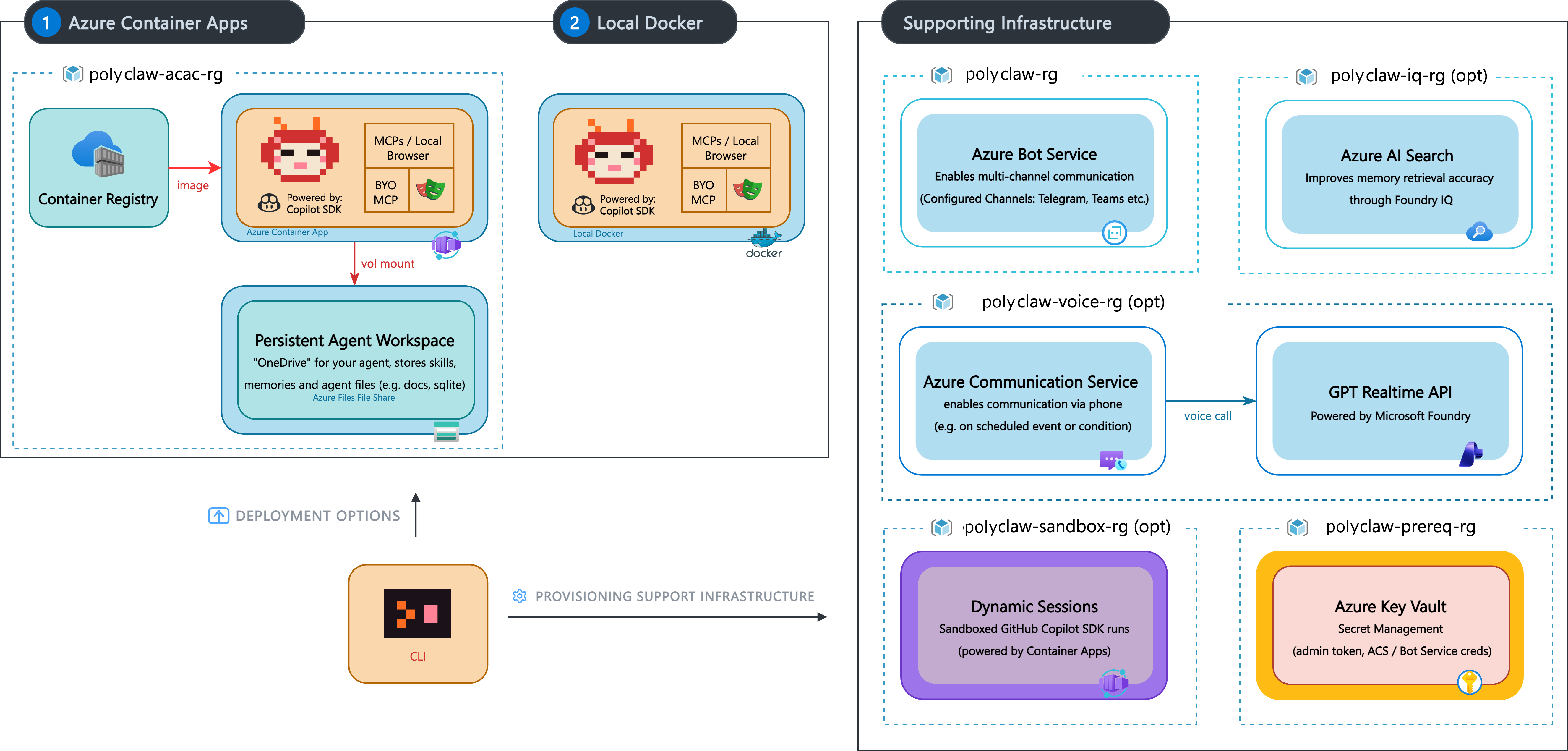

System Layers

Request Flow

Web Chat

The chat interface lets the user pick a model and a skill mode before sending a message.

1. Browser opens a WebSocket to /api/chat/ws
2. User sends a message (or slash command)
3. ChatHandler routes to CommandDispatcher or the Agent
4. Agent creates a Copilot SDK session, streams response deltas
5. Deltas are forwarded over WebSocket in real-time
6. Tool calls execute and their results are sent as structured messages
7. Session is recorded to the session store

Bot Framework

1. Azure Bot Service delivers an activity to POST /api/messages
2. BotEndpoint validates the request and dispatches to PolyclawBot
3. The bot sends an immediate typing indicator (to avoid the 15-second timeout)
4. Processing runs in a background task via MessageProcessor
5. Agent generates a response, which is delivered via proactive messaging
6. Rich cards and media attachments are sent through the CardQueue

Voice Call

1. POST /api/voice/call initiates an outbound call via ACS
2. ACS callback events arrive at POST /acs
3. On connect, media streaming starts via WebSocket at /realtime-acs
4. RealtimeMiddleTier bridges ACS audio to Azure OpenAI Realtime API
5. Speech-to-text and text-to-speech happen in real-time

Data Flow

All persistent state is stored as JSON files under ~/.polyclaw/ (configurable via POLYCLAW_DATA_DIR):

~/.polyclaw/
  SOUL.md                # Agent personality
  profile.json           # Agent profile and stats
  mcp_servers.json       # MCP server configuration
  scheduler.json         # Scheduled tasks
  proactive.json         # Proactive messaging state
  sessions/              # Chat session archives
  media/                 # Incoming/outgoing files
    incoming/
    outgoing/
    pending/
    sent/
    error/
  memory/                # Memory consolidation
    daily/
    topics/
  skills/                # User and plugin skills
  plugins/               # User-uploaded plugins

Component Diagram

The system is organized into these runtime modules:

• agent/ – Copilot SDK wrapper, tools, prompt builder
• config/ – Settings singleton, environment loading
• media/ – MIME classification, attachment handling
• messaging/ – Bot, cards, commands, proactive delivery
• realtime/ – Voice routes, ACS middleware, auth
• registries/ – Plugin and skill registries
• server/ – aiohttp app, routes, middleware, chat handler
• services/ – Tunnel, deployer, Key Vault, Azure CLI wrapper
• state/ – Session, memory, profile, MCP config, proactive state

Dive deeper:

• Agent Core
• Server & Middleware
• State Management
• Services Layer
